ESD Resistance Classifications and Testing Standards

ESD flooring systems are classified by electrical resistance — the property that determines how quickly static charge dissipates through the floor and into the building’s grounding system. Three resistance classifications apply to commercial and industrial ESD flooring:

Conductive flooring: resistance of 25,000 ohms to less than 1 megohm (10³ to <10⁶ ohms). Conductive flooring provides the fastest discharge path and is required in the most static-sensitive environments — powder handling, explosive atmospheres, and facilities with strict ANSI/ESD S20.20 compliance requirements.

Static dissipative flooring: resistance of 1 megohm to 1 gigaohm (10⁶ to 10⁹ ohms). Static dissipative flooring is the more common specification for data centers, electronics assembly, and server rooms. It slows static discharge rather than eliminating it — reducing the risk of fast, damaging discharge events while maintaining personnel safety.

Antistatic flooring: resistance greater than 1 gigaohm. Antistatic materials resist charge generation at the surface rather than providing a controlled discharge path. These are not ESD flooring in the technical sense — they are used in environments where charge generation prevention is the goal rather than grounding. CCR specifies based on your facility’s actual sensitivity requirements, not a generic ESD label.

Resistance testing during and after installation confirms the system meets specification. ANSI/ESD S20.20 and IEC 61340-5-1 are the primary standards governing ESD control programs including flooring requirements. CCR coordinates specification requirements with facility compliance teams during preconstruction.

Grounding Systems and Static Charge Dissipation

An ESD floor system only works when it is properly connected to a building grounding network. The floor coating alone does not eliminate static electricity — it provides the conductive or static dissipative path through which static charge travels from the person or object to ground. Without a completed grounding circuit, even a correctly specified ESD floor system cannot perform its function.

Grounding is achieved through copper grounding strips or grounding points embedded beneath or within the floor system and connected to the building’s grounding bus. The frequency of copper grounding points depends on the floor area size and the required resistance values. Personnel must complete the grounding path — either through ESD footwear, heel grounders, or wrist straps connected to grounded equipment. The floor provides the dissipation path; the grounding system connects that path to earth.

Static charge buildup from personnel walking on standard commercial flooring is a measurable source of ESD risk. Standard vinyl, carpet, and unsealed concrete floors generate and hold static charge that discharges into sensitive electronics on contact. Static dissipative and conductive flooring systems prevent this charge accumulation by continuously dissipating static electricity to ground as personnel move through the facility. CCR evaluates your facility’s charge generation sources and grounding infrastructure during the site assessment to ensure the specified system addresses your actual ESD risk profile.

Surface Resistivity, ESD Program Standards, and Floor Tile Alternatives

Surface resistivity and volume resistivity are the two electrical measurements used to characterize ESD flooring performance. Surface resistivity measures resistance across the floor surface (ohms per square). Volume resistivity measures resistance through the floor material (ohm-centimeters). ANSI/ESD S20.20 specifies resistance to ground requirements for ESD control program compliance — typically requiring that installed floors measure no greater than 10¹⁹ ohms resistance to a ground point under controlled test conditions. CCR specifies and installs systems that meet these targets when tested at the ANSI/ESD standard conditions of 12% relative humidity.

Clean room and electronics manufacturing environments often require ESD flooring combined with a static control program that includes personnel grounding, component handling procedures, and ionizer placement at static-sensitive workstations. The floor system is one layer of a complete ESD control program — it provides the passive dissipation path while active measures (wrist straps, ionizers, ESD packaging) address other charge sources. CCR coordinates floor specification with facility ESD program managers to ensure the installed floor system supports the full program’s requirements, not just the floor specification in isolation.

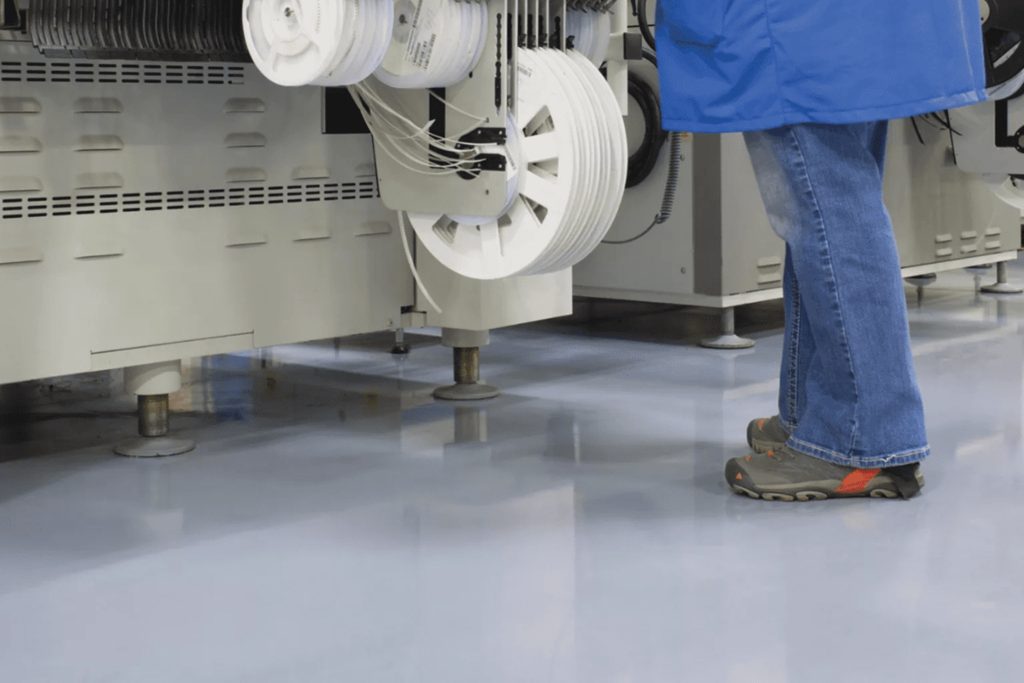

ESD floor tile is an alternative to poured epoxy for some applications. ESD-rated vinyl floor tile or conductive carpet tile can be installed in certain environments as a modular alternative to a continuous epoxy coating. However, tile-based systems introduce grout lines or seams that may not meet cleanroom contamination control requirements, and tiles require individual ground connection for each unit to function as designed. For most commercial and industrial applications — data centers, electronics assembly, pharmaceutical clean rooms — a seamless poured epoxy ESD system provides more reliable, maintainable, and verifiable static control performance than a tile-based alternative. CCR installs poured ESD epoxy systems only; we do not install ESD tile.

Humidity significantly affects ESD flooring performance. At low relative humidity (below 15%), static electricity generation increases dramatically because dry air is a poor conductor. ESD flooring systems maintain their protective dissipation path regardless of humidity levels — unlike anti-static treatments that depend on moisture for conductivity. This makes properly specified static dissipative and conductive flooring essential in Colorado’s dry climate, where humidity routinely drops below ESD-critical thresholds in winter and in climate-controlled facilities. ESD damage to sensitive electronic components can occur at discharge events below the threshold of human perception — making passive ESD floor protection a baseline requirement, not an optional upgrade, in electronics handling environments.
